Understanding STM32 HAL and LL Drivers — Using SysTick as a Practical Example

When developing firmware for STM32 microcontrollers, engineers typically encounter three programming layers:

1. Direct register programming (CMSIS / Bare-Metal)

2. LL (Low Layer) drivers

3. HAL (Hardware Abstraction Layer)

These layers provide different trade-offs between abstraction, portability, code size, and performance.

To understand how they differ, the SysTick timer is an excellent example because it is used by almost every STM32 project as the system time base.

This article explains:

• What HAL and LL drivers are

• Why both exist

• How they differ

• How they use SysTick

• What actually happens inside the driver stack

The examples target STM32 devices from STMicroelectronics running on ARM Cortex-M processors.

---

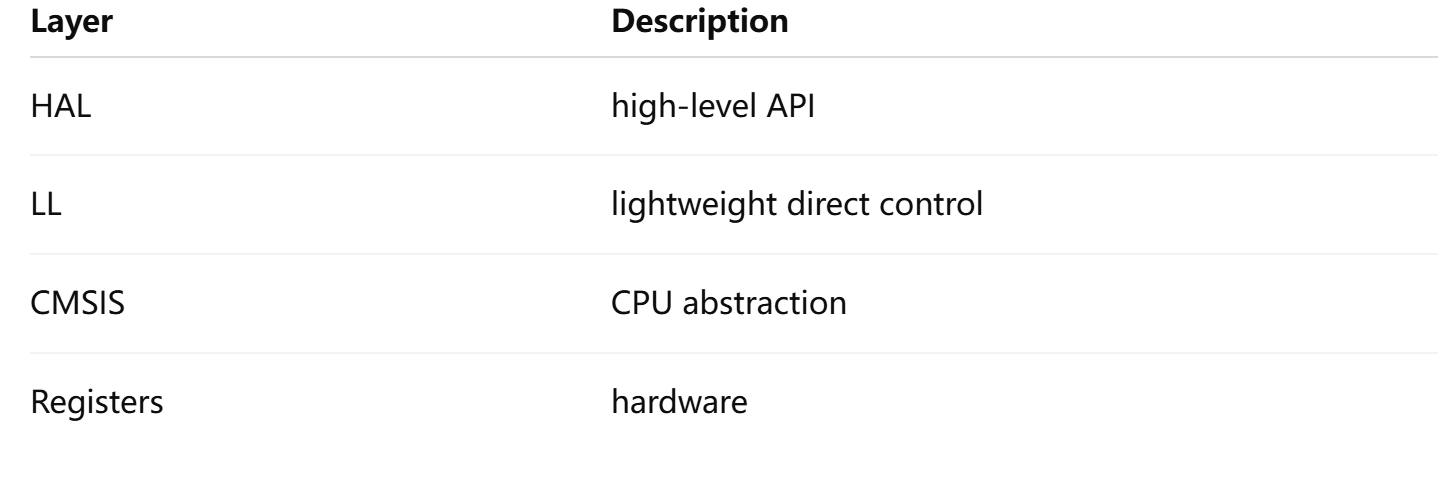

1. The STM32 Software Stack

The STM32 firmware ecosystem is organized into layers.

Application
     │
     ├── HAL Drivers
     │
     ├── LL Drivers
     │
     ├── CMSIS
     │
     └── Hardware Registers

Each layer provides a different level of abstraction.

---

2. What is HAL?

HAL (Hardware Abstraction Layer) is a high-level driver framework provided by STMicroelectronics.

Goal:

Simplify firmware development

HAL hides most hardware details and provides portable APIs.

Example HAL code:

HAL_GPIO_WritePin(GPIOA, GPIO_PIN_5, GPIO_PIN_SET);

Instead of writing registers manually.

HAL advantages:

• easy to use

• portable between STM32 families

• supported by STM32CubeMX

But there are tradeoffs:

• larger code size

• more abstraction layers

• slightly slower execution

---

3. What is LL?

LL (Low Layer) drivers are a lightweight alternative to HAL.

Goal:

Provide near-register level control

Example:

LL_GPIO_SetOutputPin(GPIOA, LL_GPIO_PIN_5);

Compared to HAL:

• fewer checks

• smaller code

• faster execution

LL is essentially a thin wrapper over registers.

---

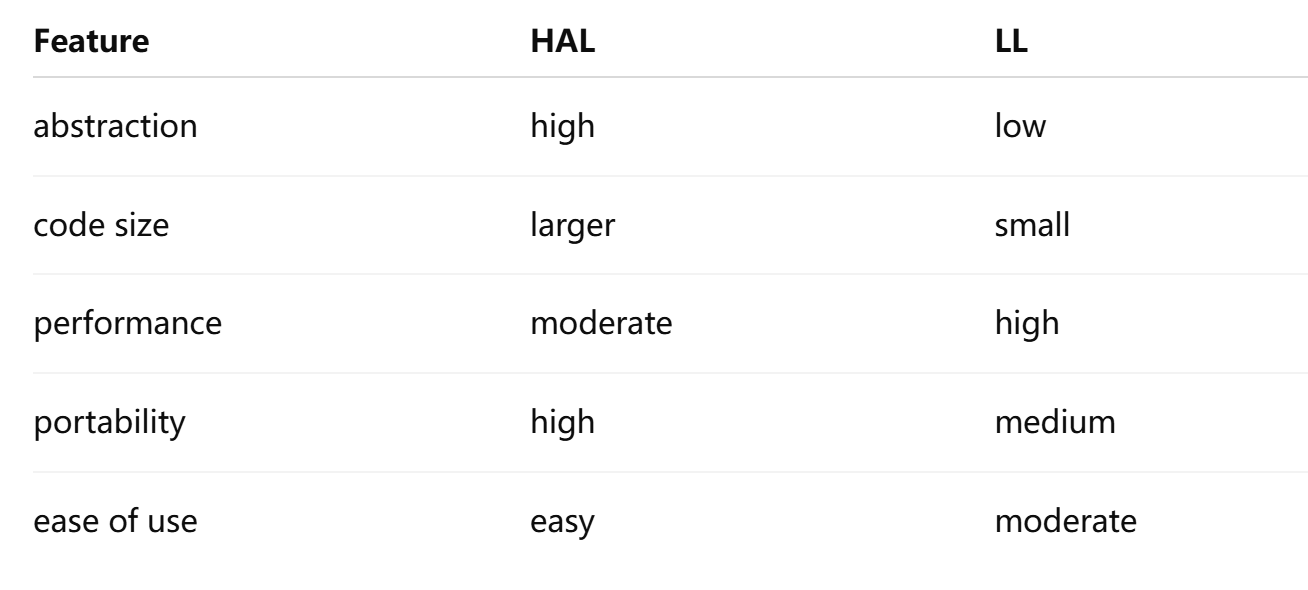

4. HAL vs LL Design Philosophy

Typical usage patterns:

Application code → HAL
Performance-critical code → LL
Drivers / RTOS → CMSIS

---

5. SysTick as a Perfect Example

The SysTick timer is a core timer inside every Cortex-M processor.

It is widely used to generate the system tick interrupt.

Typical configuration:

1 millisecond interrupt

This interrupt drives:

• HAL delays

• RTOS scheduling

• system time base

---

6. SysTick Hardware Overview

SysTick contains only a few registers.

SysTick Registers
------------------

CTRL   control
LOAD   reload value
VAL    current counter
CALIB  calibration

When the counter reaches zero:

interrupt triggered
reload value loaded
counter restarts

---

7. Configuring SysTick with CMSIS (Bare Metal)

At the lowest level, SysTick is configured through CMSIS.

Example:

SysTick_Config(SystemCoreClock / 1000);

This function configures:

1ms system tick

Equivalent manual configuration:

SysTick->LOAD = SystemCoreClock/1000 - 1;
SysTick->VAL  = 0;

SysTick->CTRL =
      SysTick_CTRL_CLKSOURCE_Msk
    | SysTick_CTRL_TICKINT_Msk
    | SysTick_CTRL_ENABLE_Msk;

---

8. SysTick in HAL

In STM32 HAL, SysTick is automatically initialized during system startup.

Initialization flow:

main()
  ↓
HAL_Init()
  ↓
HAL_InitTick()
  ↓
SysTick_Config()

Inside HAL_Init():

HAL_InitTick(TICK_INT_PRIORITY);

Which sets:

SysTick frequency = 1kHz

---

9. HAL SysTick Handler

HAL implements a global tick counter.

uwTick

The interrupt handler:

void SysTick_Handler(void)
{
    HAL_IncTick();
}

Tick increment function:

void HAL_IncTick(void)
{
    uwTick++;
}

---

10. HAL Delay Implementation

HAL delays rely on the tick counter.

Example:

void HAL_Delay(uint32_t delay)
{
    uint32_t start = HAL_GetTick();

    while((HAL_GetTick() - start) < delay)
    {
    }
}

This creates a blocking delay.

HAL_GetTick() → returns milliseconds

---

11. SysTick in LL Drivers

In STM32 LL, SysTick initialization is manual.

Example:

LL_Init1msTick(SystemCoreClock);

This function calculates:

reload = SystemCoreClock / 1000

Equivalent register configuration.

---

12. LL SysTick Handler

Example implementation:

volatile uint32_t tick;

void SysTick_Handler(void)
{
    tick++;
}

Access function:

uint32_t LL_GetTick(void)
{
    return tick;
}

Delay example:

uint32_t start = LL_GetTick();

while((LL_GetTick() - start) < 100);

---

13. HAL vs LL SysTick Flow

HAL adds additional abstraction.

HAL Flow

SysTick interrupt
        ↓
SysTick_Handler
        ↓
HAL_IncTick
        ↓
uwTick++

---

LL Flow

SysTick interrupt
        ↓
SysTick_Handler
        ↓
tick++

The LL path is shorter.

---

14. Performance Difference

HAL adds additional code layers:

Application
  ↓
HAL API
  ↓
HAL internal logic
  ↓
register write

LL path:

Application
  ↓
LL macro
  ↓
register write

Therefore:

LL = smaller + faster
HAL = easier + safer

---

15. How RTOS Uses SysTick

Real-time operating systems like FreeRTOS use SysTick as the scheduler clock.

Example scheduling timeline:

Time →

0ms   1ms   2ms   3ms
 |     |     |     |
Tick  Tick  Tick  Tick
 |     |     |     |
Scheduler decision

Each tick:

update system time
wake sleeping tasks
trigger context switch

---

16. When to Use HAL vs LL

Use HAL when

• developing applications quickly

• portability is important

• using CubeMX auto code generation

Use LL when

• performance is critical

• code size must be minimal

• precise hardware control is required

Many professional projects combine both:

HAL for drivers
LL for performance sections

---

17. The Big Picture

The STM32 firmware stack ultimately looks like this:

Application
     │
     ├── HAL API
     │
     ├── LL API
     │
     ├── CMSIS
     │
     └── Cortex-M Hardware
           │
        SysTick

SysTick provides the time base that drives:

• HAL delays

• application timers

• RTOS scheduling

---

18. Key Takeaways

HAL and LL provide two different philosophies for firmware development.

HAL

• easier

• portable

• feature rich

LL

• lightweight

• faster

• closer to hardware

Using SysTick as an example clearly shows how both driver layers interact with the underlying Cortex-M hardware.

---

✅ In one sentence

HAL simplifies development while LL provides performance and control — and both ultimately rely on the same hardware like SysTick inside the Cortex-M core.
